The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the super-sized 46 gallon octagonal drum (P|Flux 2 and 3), and a bright LED light illuminating the drum on all P|Flux models. Plus, LED and audio warning lets you know when the drum is full – features that are now standard in this line.
Double Paddles runs 10 seconds each direction every 10 minutes
2 locking caster, 2 freeall swivel 360°
Control panel features a brand new design
LED lights up drum to better see the dust level
Motor Specs: 1.5HP
Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM
Running AMP: (with 6″ inlet) 18.8A at 110V; 9.4A at 220V
Maximum Air Flow: 1314 CFM (Cubic Feet Per Minute)
Shop Setting Air Flow*: 900 CFM
Max Static Pressure: 10.1″
Fan Size: 13.5″
Inlet: One 6″ or Two 4″ Ports
Auto Clean: 10 min. Interval 10 Seconds F+R
Remote Control: High Frequency
Collection Capacity: 25 Gallon Octagon Drum
Decibel Reading: 70 dB (@9.8ft)
Assembled Dimensions (L x W x H): 42″ x 25″ x 68″
Packing Size (L x W x H): 45″ x 28.3″ x 47″ (114.5 x 72 x 119.5 cm)
Machine Weight: 232 lbs. (105 kg)
Shipping Weight: 287 lbs. (130 kg)
Filtering Area: 48.4 sq/ft (4.5 sq/m)
Cartridge Filter**: HEPA, 15.74″ x 19.68″ (40 x 50 cm) x 1pc
* Shop Setting Air Flow measured with hoses connected to inlet. See Performance tab for more details.
** The non-stick PTFE membrane has some disintegration after 200,000 cycles at the area where the cleaning paddles/arms touch the filter media. This does not largely affect the filtration efficiency. The HEPA filter media used on Laguna Cyclones are independently tested by an accredited 3rd party (TTRI). Designed with wide-spaced pleating to maintain optimum performance throughout filter lifespan.
P|Flux: 1 Manual
Open the manual below and click any highlighted part to puchase online
P|Flux:1 Parts Manual
View P|Flux Sell Sheet
The inlet port size is 6”. It comes with a splitter that fits over the 6” inlet. The splitter has two 4” inlets so that you can connect multiple hoses to the machine. We recommend installing blast gates on each port so that you can control which machine you are collecting from when multiple machines are connected.

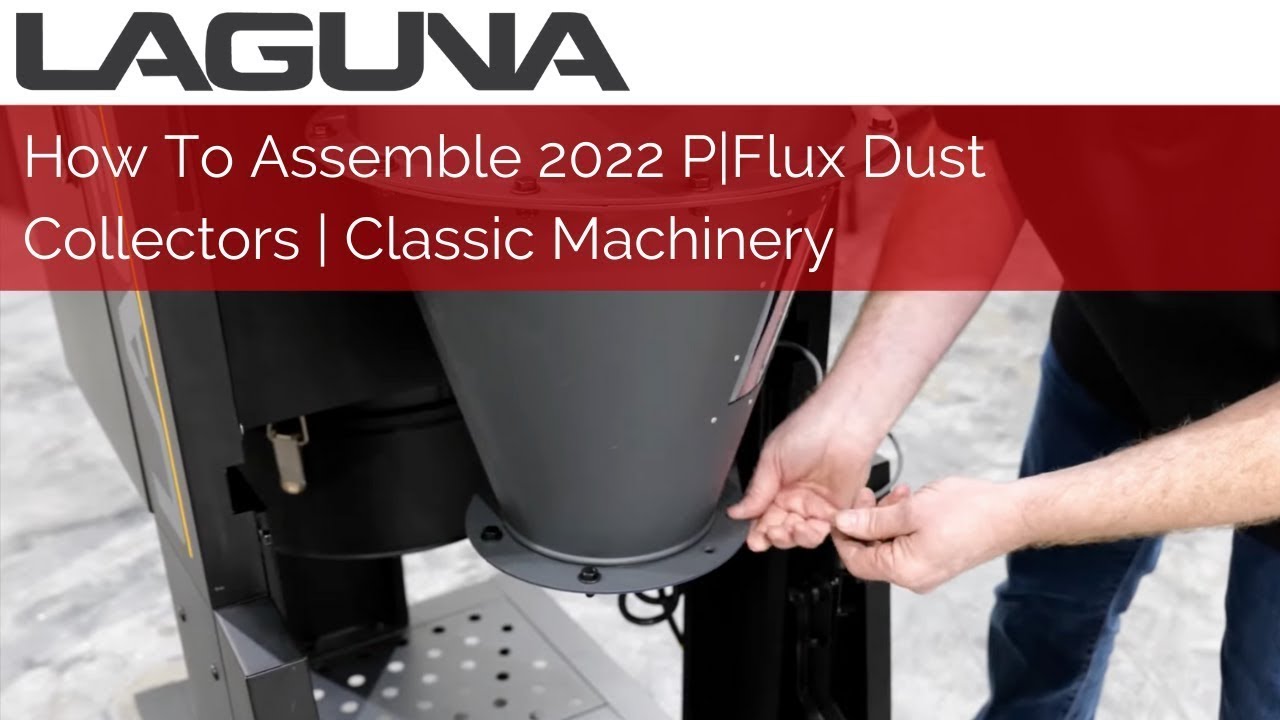

Yes. The P|Flux dust collectors ship disassembled to avoid damage during shipping and requires assembly prior to use. You can view the assembly video below:

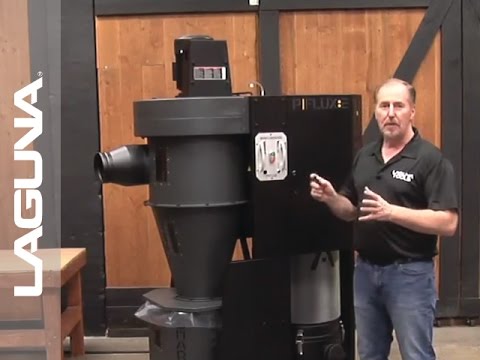

For Pre-2022 models, view the video below:
Both machines use the same motor, impeller, and basic frame. The C|Flux has a 1 micron filter; the P|Flux has a HEPA filter. The C|Flux uses a plastic bag for fine dust that is cleaned from the filter; the P|Flux uses a metal catch receptacle with a 4” cleanout port and a sight window. The C|Flux has a quick release collection drum; the P|Flux has a quick release “Smart-Drum” with a dust level sensor and LED light for viewing through the drum window. The P|Flux has additional frame supports, filter doors, and sound dampening material around the filter. The C|Flux has manual filter cleaning; the P|Flux has automatic filter cleaning.
New features and changes for 2022 include: 3-piece 25 gallon drum for easier assembly, LED drum illumination, automatic filter cleaning, ambidextrous control panel that can be mounted on the right or left side of the machine, threaded cleanout cap, LED and audio drum-full warning, updated remote, locking front casters, and newly designed control panel.
Yes. You can empty and reuse the dust collection bags if desired. Replacement bags are available through dealers or on our website. These are sold in a package of 5 bags.
The “Inlet CFM” is the maximum CFM the P|Flux dust collector achieves at the inlet port. The “Shop Setting CFM” number provides a “real world” measurement with dust collection hose connection to the machine and measurements taken downstream.
The P|Flux filter cartridge is a HEPA filter that filters out 99.97% of particles with a size of 0.3 microns . The filter cartridge is cleaned with automatic filter cleaning (2022 and newer) which cleans dust out of the filter pleats so that it is ready for the next use.
The Pflux dust collector is excellent at collecting dust, chips, and shavings from the source (bandsaw, tablesaw, planer, etc.). This helps keep the dust away from the moving parts of the machines to keep it from becoming airborne. We recommend a dual approach for shops:
Yes, the Pflux comes with a remote control. Additional remotes can be purchased and paired with the Pflux machine. Up to 5 remotes can be paired. Additional remotes are available on our website. The new remote includes a button for manual filter cleaning between the normal intervals.
Yes. The Pflux1 dust collector is designed for direct hose connections to individual machines, although many users have small ducted systems for a few machines. We recommend dust collectors with higher CFM ratings like the C|Flux: 3 and P|Flux: 3 series machines for ducted systems. If you choose to connect multiple machines with ducting, you will want to remove the splitter to connect a 6” main trunk line with 4” drops to each machine using blast gates to turn off collection to machines not in use to maximize CFM to the machine currently in use.
Our dust collectors are specifically designed and tested for woodworking dust, chips, and shavings and are designed to collect from woodworking machines. We have customers who use our dust collectors for many other applications such as plastics, paper, grinding dust, powder, and a wide range of other materials from various sources or machines. While our dust collectors may work well for these other applications, we do not have any testing data or connection information for these other uses. You will need to decide which unit would be best for your needs based on the CFM and how you intend to connect to your equipment.
No. The P|Flux machines use magnetic safety switches which are not suitable for aftermarket systems like the iVac system. Use of these types of systems will require bypassing the factory switches.
The P|Flux dust collector is designed for single machine operation. It works well with Tablesaws, Bandsaws, Jointers, Planers, Sanders, Router Tables, CNC machines, and more.
The inlet on the P|Flux 1 is an 6” inlet. It is supplied with a 2-way splitter that fits onto the 6” inlet. The splitter has two 4” inlet ports. We recommend using a 4” diameter dust collection hose with this machine. Should you need to connect to machines with smaller outlets like miter saws or similar portable machines, we recommend stepping the 4” hose down with a reducer near the machine being connected to. Users may need to provide “bleed air” when stepping down to smaller sizes. This is accomplished by installing another inlet on a Y fitting that can be opened to introduce additional ambient air into the air-stream when collecting from smaller outlets. This additional air helps to keep up the velocity in the 4” hose and keeps the impeller from starving for airflow when connected to small ports.
New woodworking machines sold by Laguna Tools carry a two-year warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machines sold to be free of manufacturers’ defective workmanship, parts and materials. Details are available on our Warranty page.
To register your machine, follow the link below and complete the online form. You will need to upload a copy of your receipt. This can be the receipt file from a dealer, a scan, or photo of your receipt.
You can contact our service department by several methods. You can reach service by phone at (800) 332-4094. You can email us at [email protected]. You may be asked to leave your name and contact information for one of our techs to reach you. You can also open a service ticket by completing this online form. Service requests are handled in the order that they are received. You can find useful tips and tricks in our How-To videos and Tech-Tips videos on our YouTube channel.
The P|Flux dust collectors and all of our Classic Series machines are sold exclusively through authorized Laguna Tools dealers. You can find the closest dealer or online dealers using our Dealer Locator
Laguna Classic Series machines are designed in California at our Huntington Beach facility and are manufactured and shipped globally. The Pflux dust collector is manufactured at an ISO-9001 certified facility in Taiwan.
Yes, the P|Flux dust collector is CSA inspected and certified. The CSA certification means it has been tested against applicable North American standards requirements and is widely accepted by many government and code officials, regulatory and regulation bodies, leading retailers, and Authorities Having Jurisdiction (AHJ). The CSA mark demonstrates that a product has been rigorously tested to applicable standards. These include standards written or administered by the American National Standards Institute (ANSI), Underwriters Laboratories (UL), CSA Group (CSA), NSF International (NSF), and other North American and global organizations
The remotes are RF (radio frequency) rather than the IR (infrared) type used by other manufacturers. The RF remote controls do not require line-of-sight like IR remotes. This allows them to be used through many walls. An additional benefit is that they do not affect fluorescent shop lighting.
The P|Flux and C|Flux machines are shipped with a 6’ cord but without a plug. You will need to select and purchase separately a plug that matches your shop outlets. Common plugs are readily available at most home improvement stores.
Yes. The P|Flux: 1 has a dual-voltage motor that can be operated on either 110 or 220 volt power. To change from 110 to 220 volt power, you will need to rewire the circuit boards (2022 and up) and change wiring at the motor. The C|Flux/P|Flux 110V TO 220V Overload Protector (SKU: PDCCF15110-220-OV) will also be needed for the conversion and can be found on our accessory site. Instructions can be viewed and downloaded here (pg. 30).
