LX3 Router Lift

Build Quality & Design

• Heavy -duty 3/8″ thick precision-machined top plate for maximum stability for routers of any size.
• Anodized surface finish for low friction and durability.

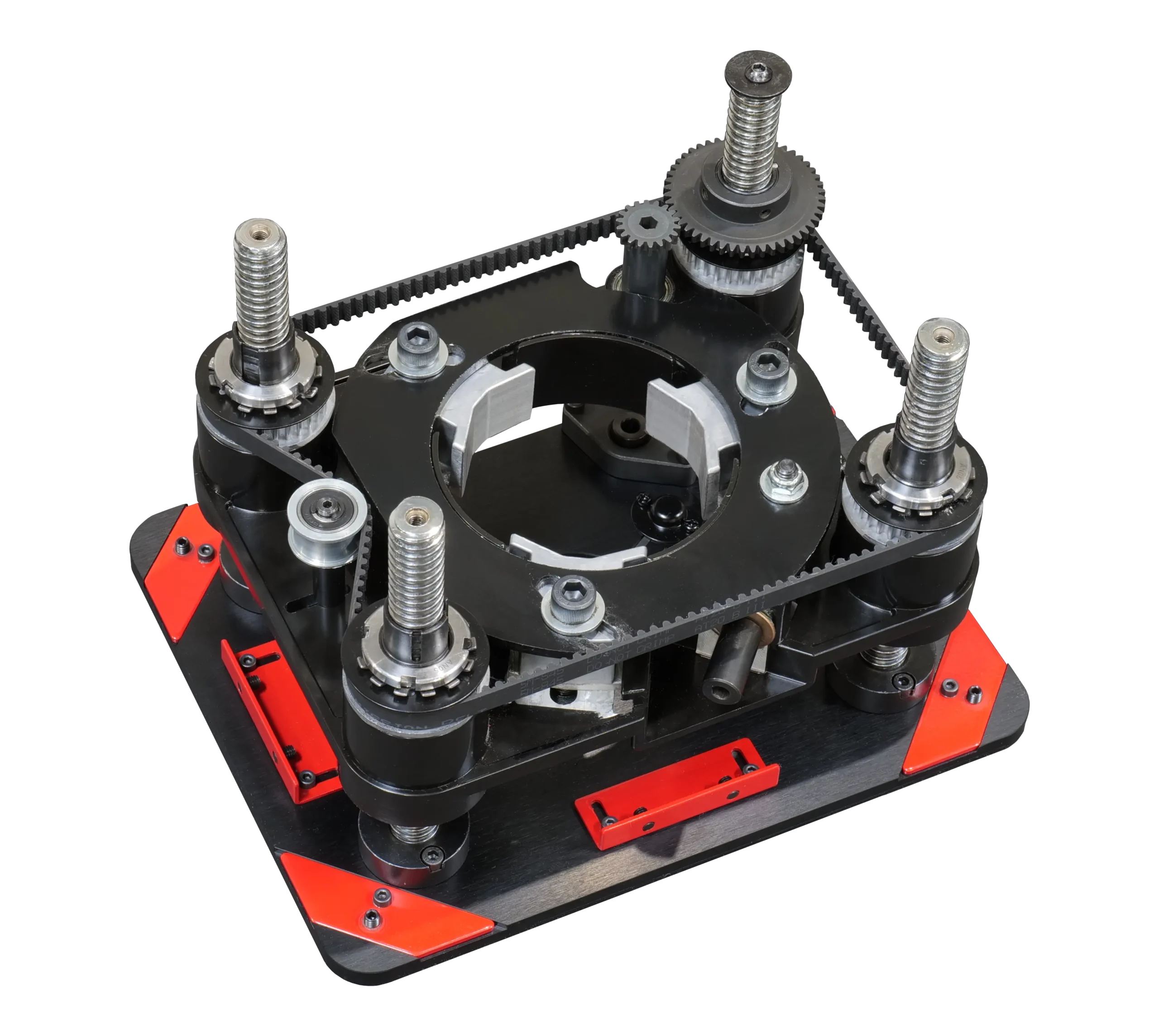

• Acme-threaded lift posts positioned at all four corners for smooth, precise operation even with heavy routers.
• Anti-backlash lift system does not require lock to maintain precise positioning.
• Three telescoping router jaws with faceted surfaces adjust quickly to securely hold routers from 3″ to 4.3″ diameter without spacers or bolt-on blocks that require a size chart to fit specific routers.
• Built-in leveling and side tension mechanisms for precise table fitment.

Versatility & Compatibility

• Standard 9.25′ x 11-3/4″ size fits all standard sized router tables.
• Fits nearly all round-bodied routers from 3″ to 4.3″ in diameter.
• 4.9″ vertical lift capability provides a greater range of use.
• Cast lift plate with wider support posts minimizes deflection and vibration for consistent routing accuracy.

Ease of Use

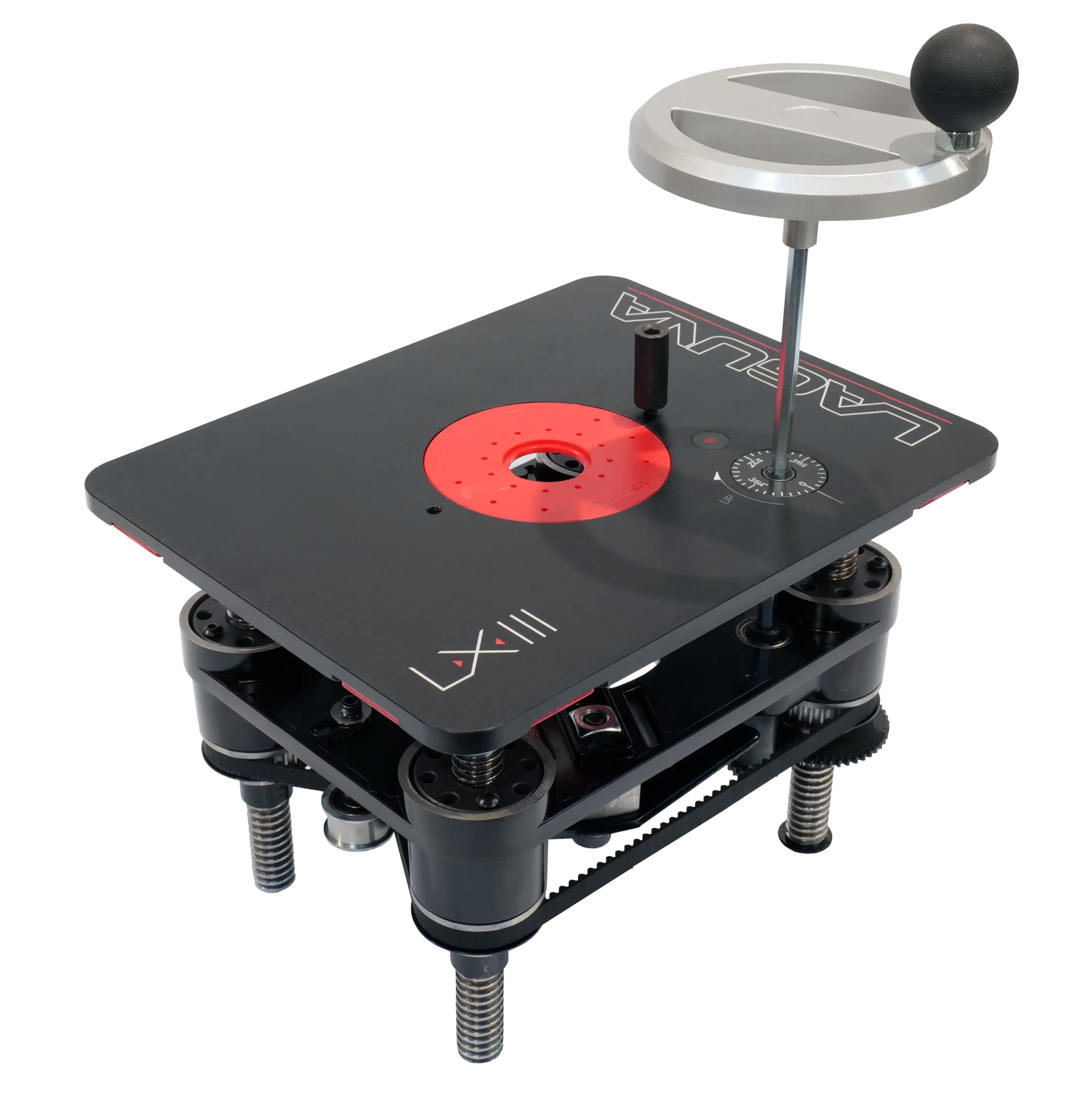

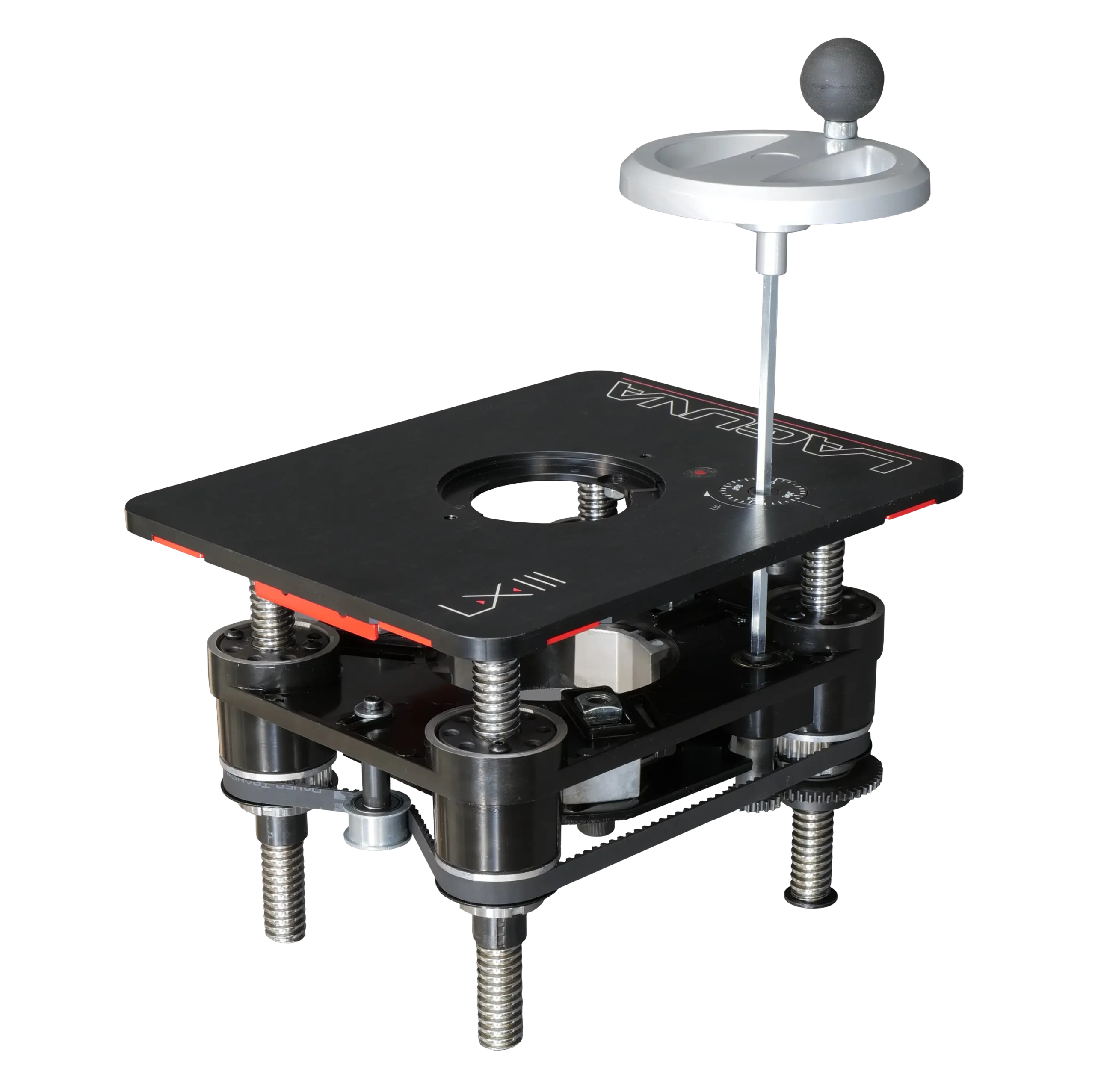

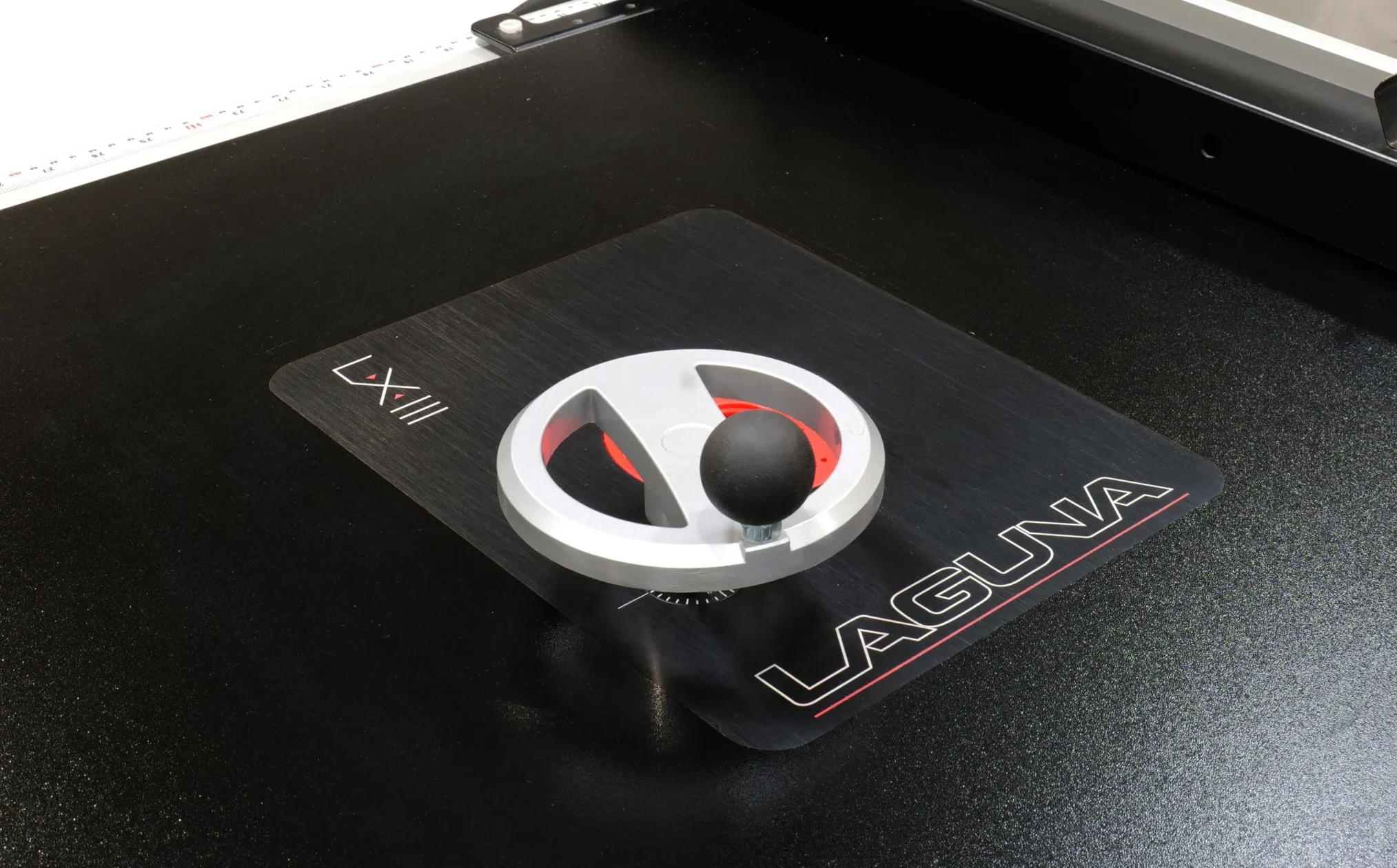

• 5″ diameter handwheel delivers quicker and more precise adjustment than standard hand cranks.
• Magnetic insert rings are released with the press of a button, making bit and insert changes tool-free and quicker.
• Easy to read scale plate with zeroing capability.  1 turn equals 1/16″ lift.
• Self centering clamping system with telescoping clamps instead of a flexing lock collar. Clamps lock in position after adjustment to securely hold the router.

Stability & Vibration Control

• Four-post support design ensures balanced lifting and eliminates racking

• Adjustable leveling plates/pads for perfectly flush table alignment

• Edge tension (gap adjustment) guides eliminate play in table opening

• Vibration-resistant design for smoother cuts and improved finish quality

Safety & Control

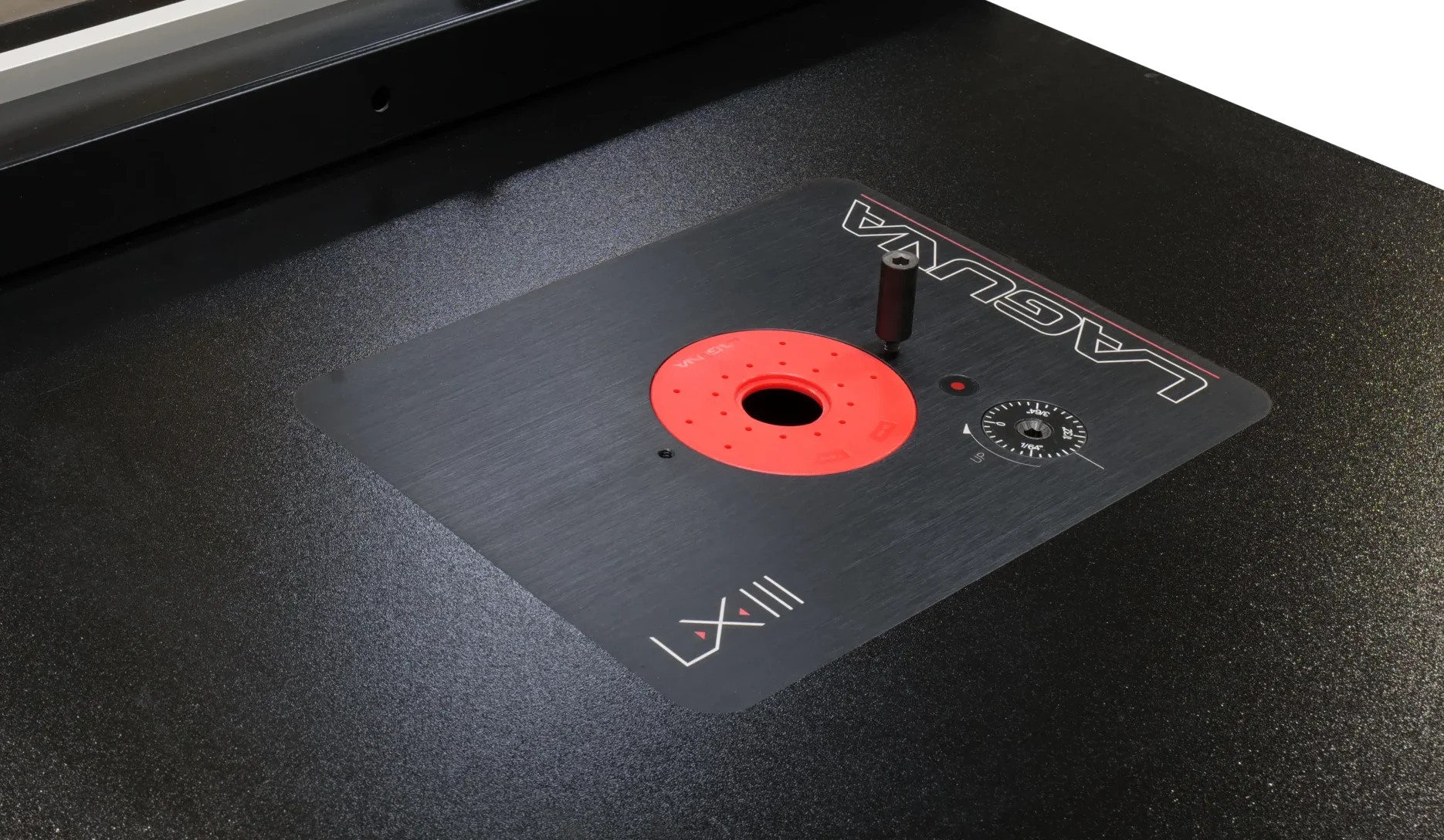

• Includes starter pin support for safe freehand routing operations

• Secure locking clamp system with bolt reinforcement to prevent router movement

• Stable lift mechanism reduces risk of sudden shifts during operation

• Designed for controlled, predictable bit height adjustments

Precision Operation

• 4-corner support and lifting offers a higher level of precision and less vibration even with larger routers.
• Adjustable leveling plates and edge tension rails are one-time settings that precisely fit the lift to your table opening to eliminate vibration, unwanted movement, or the need to unscrew the lift from the table for a router change.
• Micro-adjustment capability with precision increments on scale plate.  1/512″ lift per increment (~.002″)

Included Components & Accessories

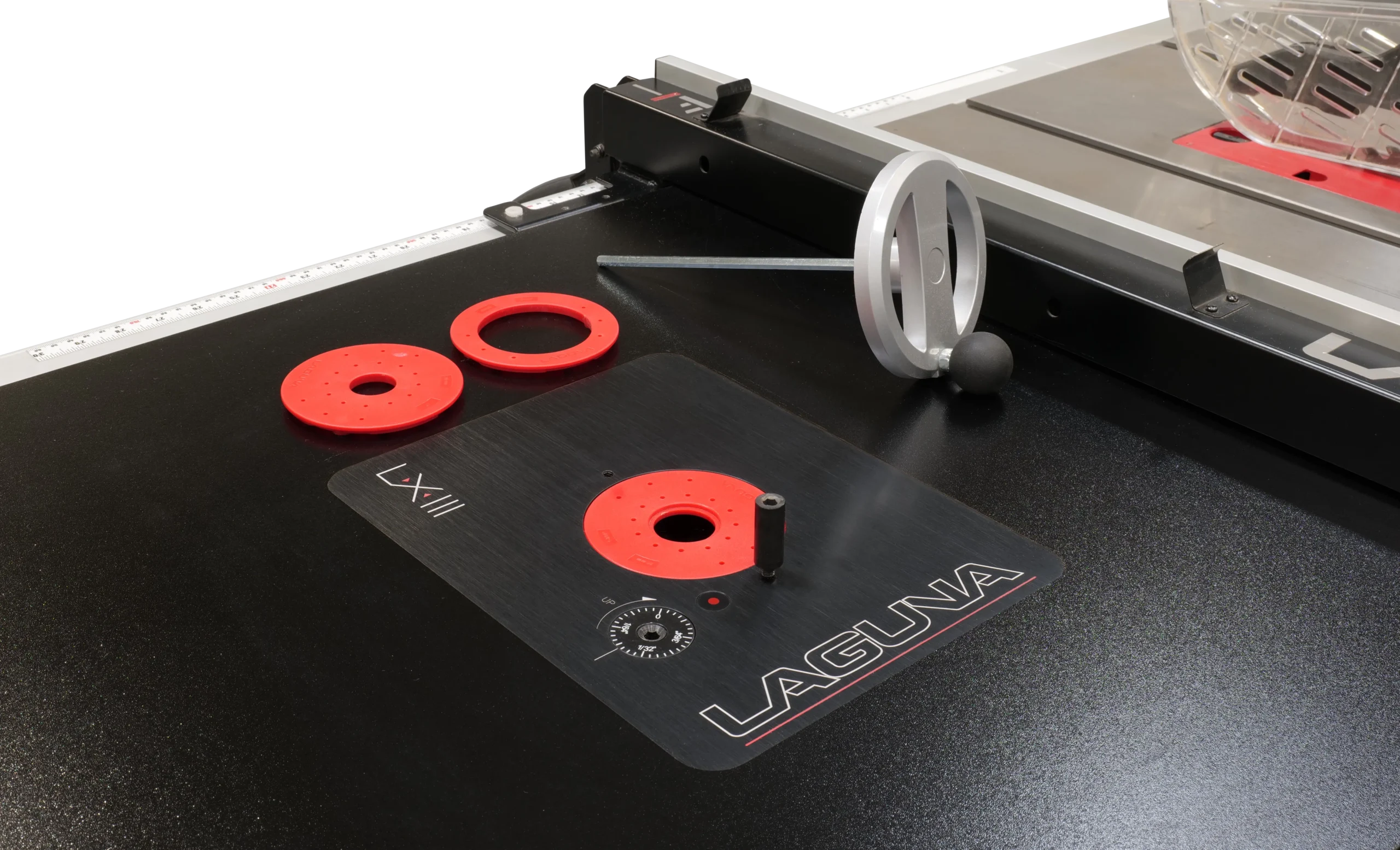

• Multiple insert rings (1″, 1-3/16″, 2-5/8″) for versatility

• Handwheel with knob for precise adjustments

• Starter pin for guided routing operations

• Allen key for setup and adjustments
