Swift Series

Swift MT (Multi-Tool)

Sign Making - Vinyl Cutting - Production

The Laguna Swift MT has everything you need to handle your routing, cutting and creasing operations. With the Laguna Vision System, you can quickly find registration marks to identify parts and adjust the cutting path, giving you perfect cutouts in printed shapes.

Features:

  • 3HP Liquid-Cooled Industrial Spindle
  • LAGUNA Vision System
  • Tangential Knife System
  • One-Piece Welded All-Steel Frame
  • 4 to 6-Zone Phenolic Vacuum Table
  • Helical Rack and Pinion On X and Y Axis
  • Ground Ball Screw On Z Axis
  • 7″ Gantry Clearance
Clear
SmartShop® II Pricing Options

Fill out this form to receive a free quote for the Swift MT

Previous
Next

Explore The Swift MT

Work Table Size (W x H)

4′ x 4′

4′ x 8′

5′ x 10′

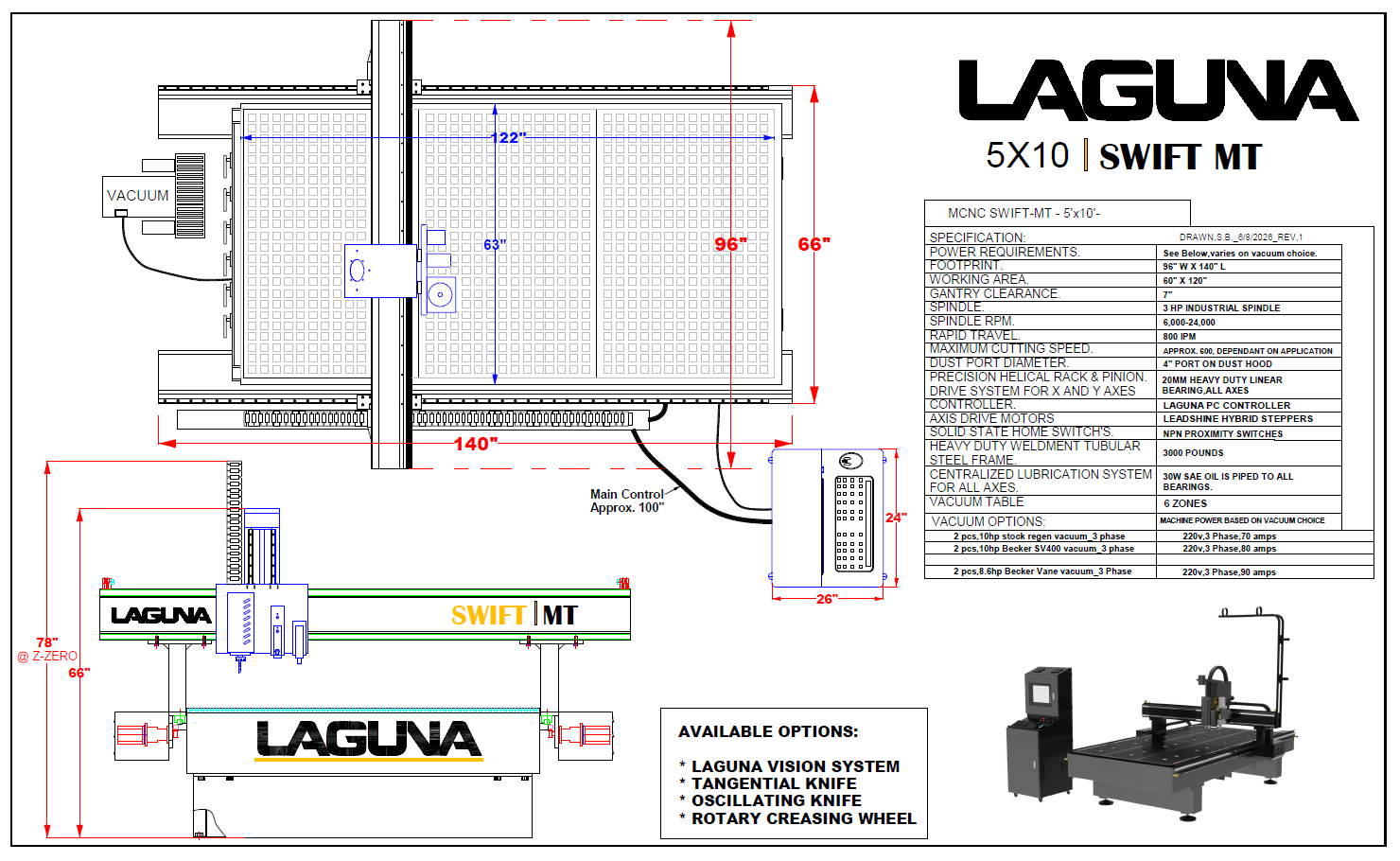

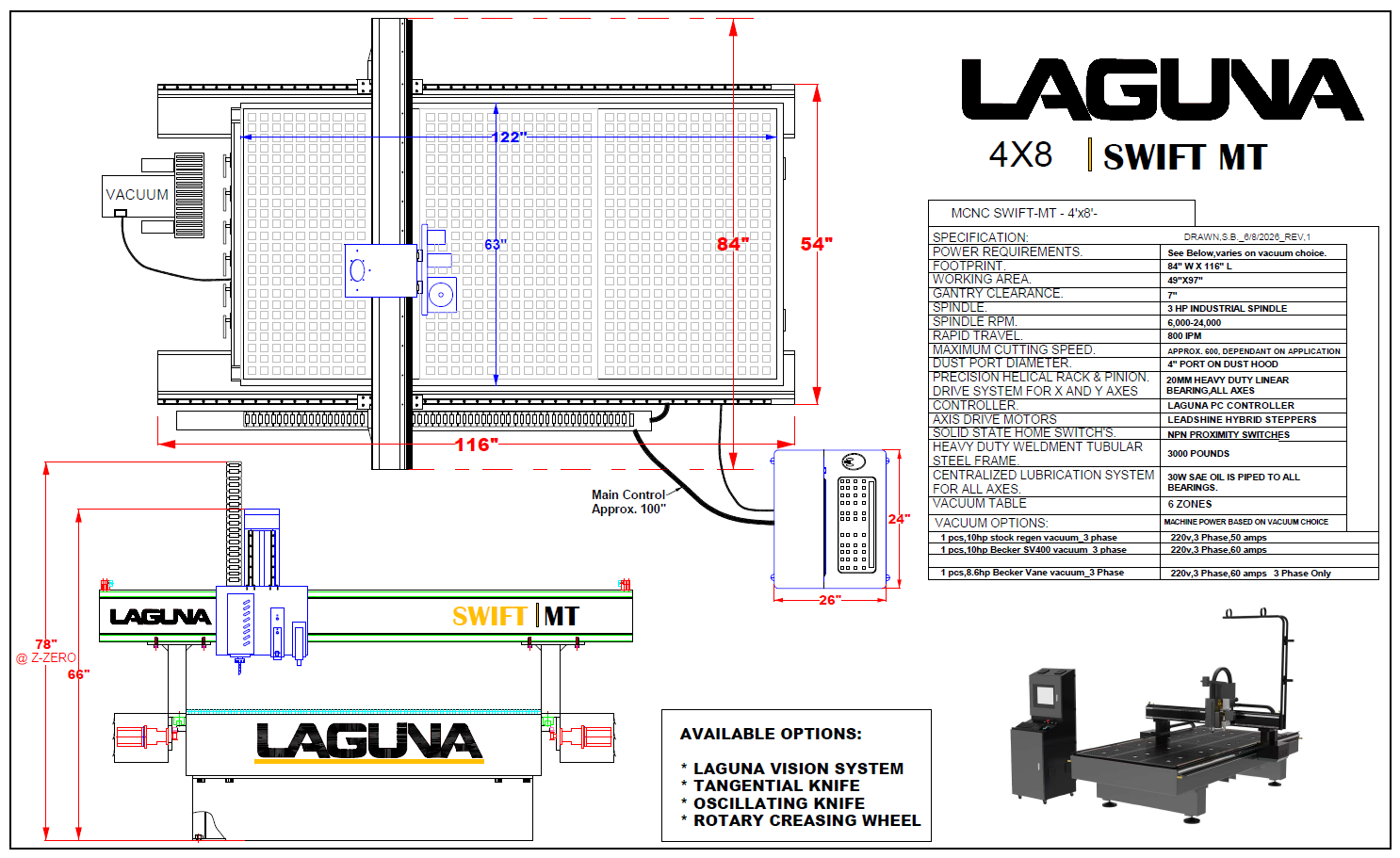

Machine Footprint (W x L x H)

57.99″ x 67.92″ x 75.12″

57.99″ x 135.83″ x 75.12″

69″ x 160″ x 78″

Type Of Table

Phenolic Universal Grid-Type Vacuum Table With T-Slot Feature

Four (4) – Six (6) Independently Controlled Vacuum Zones



Spindle Details

3HP Liquid-Cooled Spindle

RPM: 6,000 – 24,000

Dust Port Diameter: 4″

Gantry Details

Rapid Travel: 900″/min

Max Cut Speed: 600″/min

Gantry Height: 12″

Gantry Clearance: 7″

20mm Heavy Duty Linear Bearing On All Axes

Helical Rack-And-Pinion Drive System X & Y Axes



Cooling Systems

Liquid-Cooling

Power Requirements

200V

40A

3 Phase or 1 Phase With Vacuum VFD
