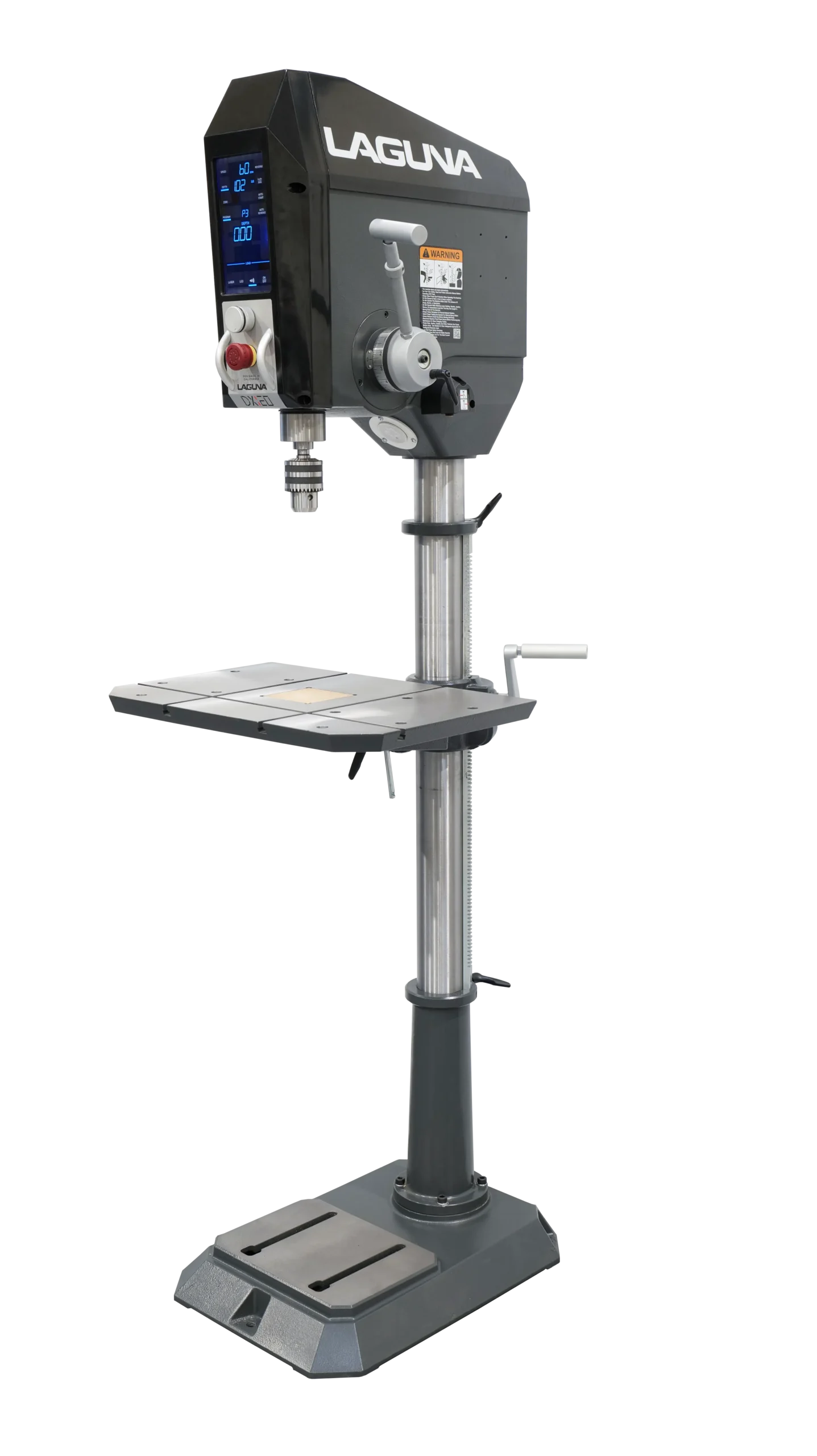

Building on the proven performance of the Laguna DP 20, the DX 20 Drill Press delivers the same intelligent features and precision controls with the added benefit of a more powerful 2.5 HP motor. Experience unparalleled efficiency with the Auto-Start function, which activates the drill press when the quill is lowered and stops it when raised.
$2,599
Intuitive Interface with Unique Touchscreen
Quill Movement Handle
The T-handle on the right side of the DX:20
has a quick gear ratio that moves the quill a full 6"
in just a ½ revolution of the handle

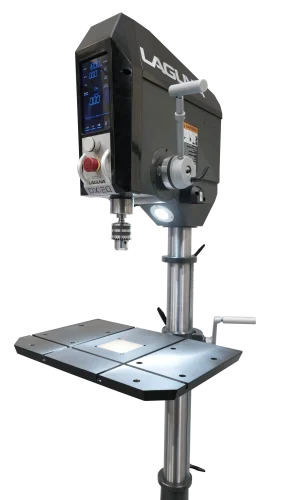

Built-in LED Light

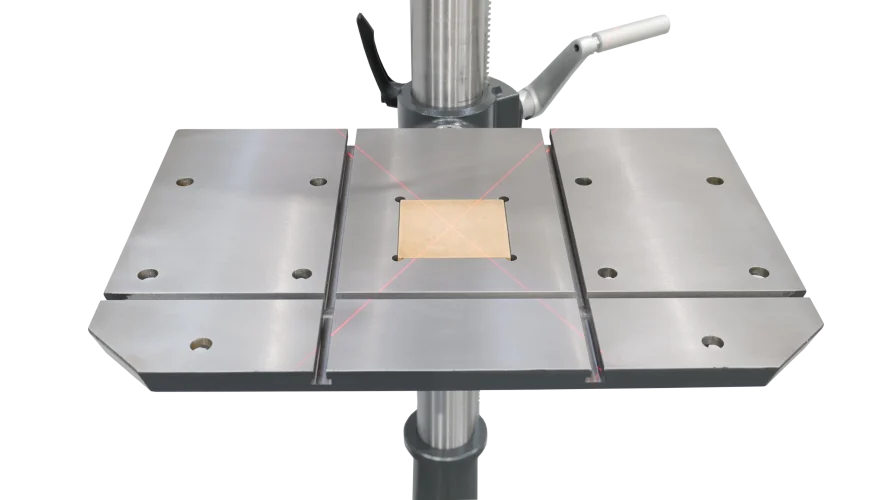

Table Laser
Large 15” x 22” cast iron table tilts up to 90 degrees left and right,
rotates 360 degrees, with T-slots and 10 clamping holes
Heavy Duty Table Lift / Tilt Assembly

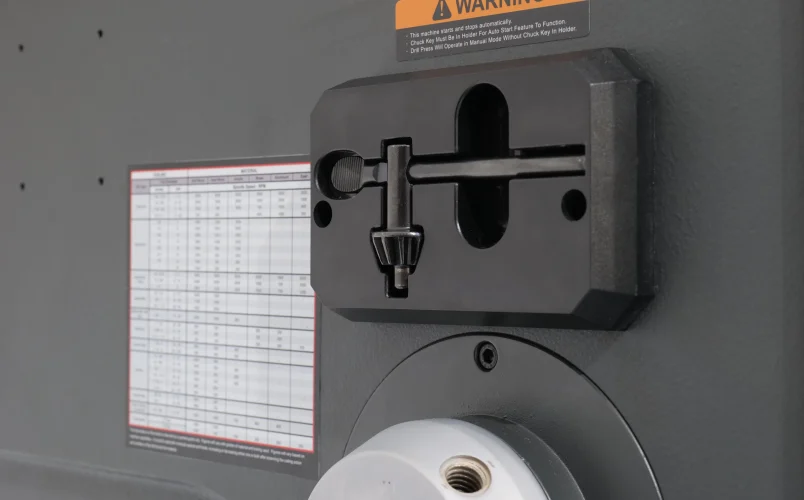

Built-in Chuck Key Holder
Laser Light Emitter
Holes for Work Lights
Holes drilled in both sides to accept additional,
optional work lights for even better illumination
Motor
Power
Voltage
Frequency
Wheel Speed
Power Transfer
Machine Control
Base Size
Column Diameter
Weight
Packing Dimensions
Memory Settings
Swing
Spindle Taper
Quill

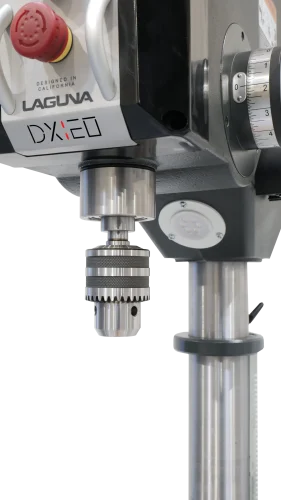

Chuck Capacity
Table
Table Movement
Spindle to Table
Spindle to Base
Optional Accessories
Digital Screen Controls
| FWD / REV | Inch / mm | Speed Setting |
| Depth Setting | Material Zero | Auto Start |
| Auto Reverse | Memory Programming and Selection
| |
*Pricing and specifications subject to change without notice
Building on the proven performance of the Laguna DP 20, the DX 20 Drill Press delivers the same intelligent features and precision controls with the added benefit of a more powerful 2.5 HP motor. Experience unparalleled efficiency with the Auto-Start function, which activates the drill press when the quill is lowered and stops it when raised. Achieve perfect, repeatable drilling depth with the electronic depth setting or mechanical depth stop. Safety is paramount with a chuck key holder featuring a sensor that locks out the Auto-Start function during bit changes. The Auto Reverse function is also a standout feature, designed for tapping applications to automatically reverse the tap when it reaches the preset depth.
The extra-large 15” x 22” cast iron worktable tilts left and right up to 90 degrees and rotates 360 degrees, offering versatile support for various workpieces and multiple clamping options. An onboard high-output 5W LED work light and crosshair lasers ensure precise material positioning and optimal visibility. Inspired by the capabilities of the DP 20 and enhanced with increased power, the DX 20 combines intelligent technology, precision, and modern design to deliver exceptional drilling performance.
Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout.
2.5 HP PWM Motor: Increased power with constant torque and forward/reverse functionality.
Auto-Start Function: Starts and stops with the movement of the quill.
Precision Depth Control: Electronic depth setting.
Advanced Safety Features: Chuck key holder with a sensor that locks out Auto-Start function during bit changes.
Customizable Memory Settings: Five programmable speed and depth settings.
Extended Quill Travel: 6 inches of precise drilling capacity.
Versatile Worktable: Large 15” x 22” cast iron table tilts up to 90° left and right, rotates 360°, with T-slots and 10 clamping holes.
High-Output LED Work Light: Onboard 5W LED for optimal visibility.
Crosshair Lasers: Ensures precise material positioning.
Modern Design: Sleek aesthetic from headstock to table control handles.
User-Selectable Screen Increments: Displays in Fractional Inch, Decimal Inch, or Decimal Millimeter.
Cross Hair Laser Material Positioning
6′ Power Cord
Audible Button Confirmation Tone
